Lionwei USB C Laptop Docking Station 3 Monitors 11-IN-1
Lionwei USB C Laptop Docking Station 3 Monitors 11-IN-1

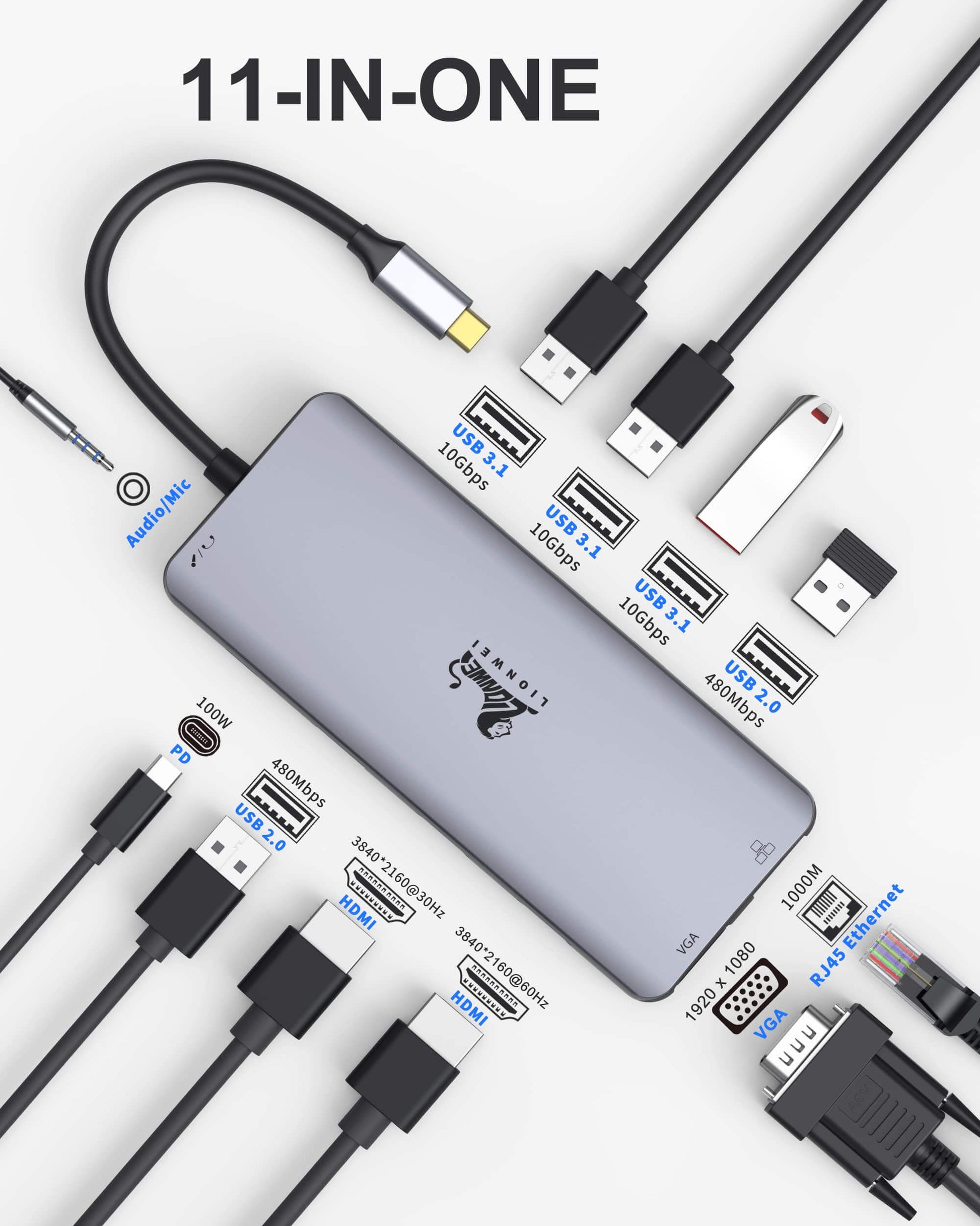

This dual monitor docking station contains 2* 4K HDMI port, 3*10G USB 3.1, 2*USB 2.0, USB C PD Charging, VGA, 1000M Gigabit Ethernet RJ45 port, and Audio/Mic 2-in-1 port; All the ports of this docking station can be in use simultaneously.

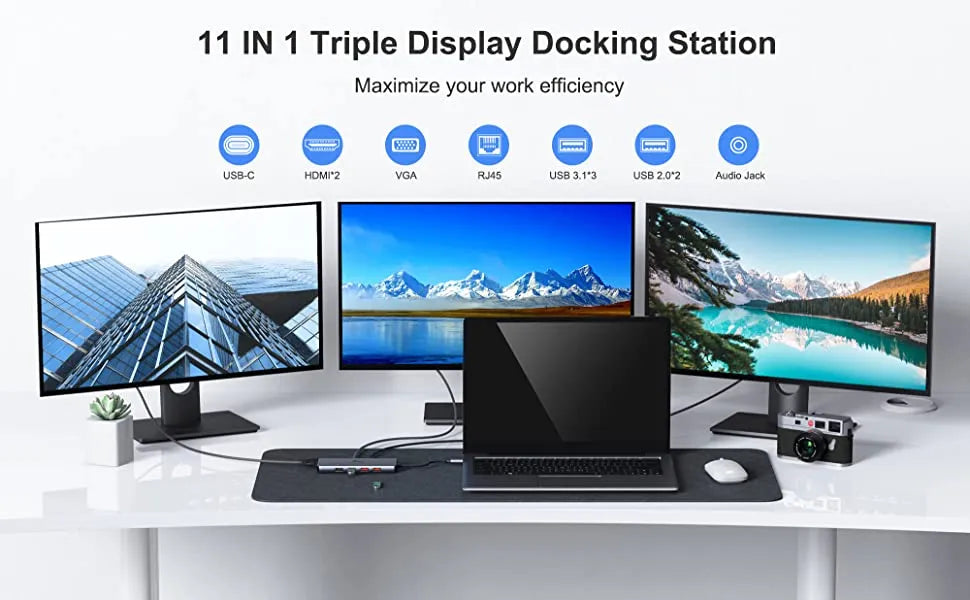

11-IN-1 USB-C Docking Station, Support MST Triple Display for Windows Systems Laptop.
LIONWEI 11 in 1 USB C Laptop Docking Station is a great complement for your USB-C/Thunderbolt 3 New Laptops.
- 2* HDMI,1* VGA port: With this HDMI Monitor adapter, you can stream/extend video to your monitor/projector/TV from your usbc devices; this adapter support triple displays for win system laptops.

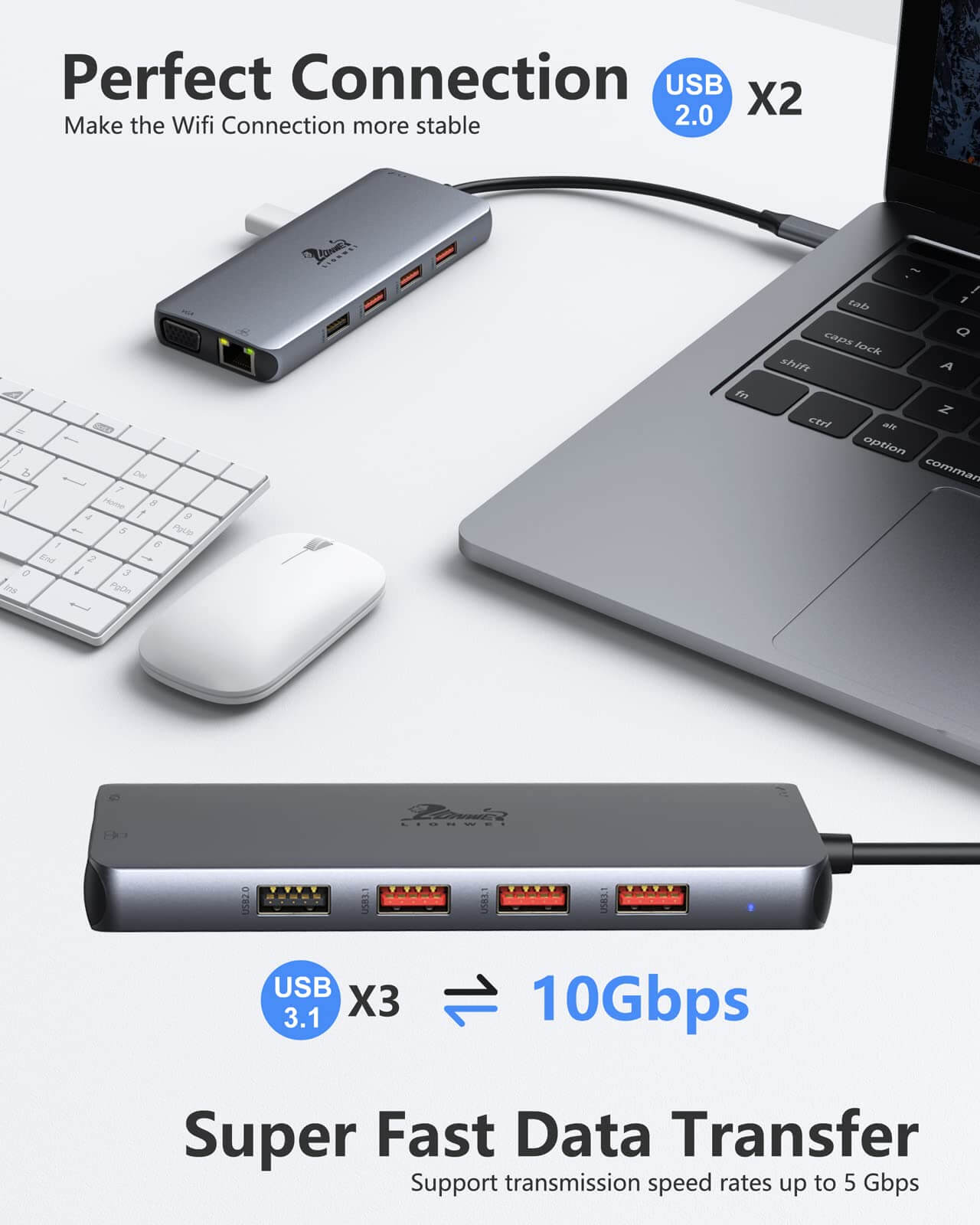

- 3* USB 3.1 ports (up to 10Gbp/s) support you connect smartphones, tablet, hard drives for effortless data transfer with USB-C port.
- 2* USB 2.0, speed up to 480mb/s, it allows you to connect keyboard or mouse without any lag.
- 1* RJ45 port: USB C To Gigabit Ethernet Adapter, provide stable wire ethernet condition,make your work more effective. Speed up to 1000Mbs. Plug and play, no need install any driver or software.
- 1* 3.5mm port: The 3.5mm Audio Port: with mic and audio-out function.
- 1* PD Charger port: Support 100W USB-C 87W(safty) charging for your laptops while using other ports of this dual hdmi adapter. The other usb c data port, speed up to 5Gbp/s. You can connect more usb-c devices for data transfer.
Before purchase please Note:
For Video Display, Please ensure the Laptop has thunderbolt 3 / USB-C 3.1 Gen 2 / USB-C 3.2 Gen 2 to support multiple-display.

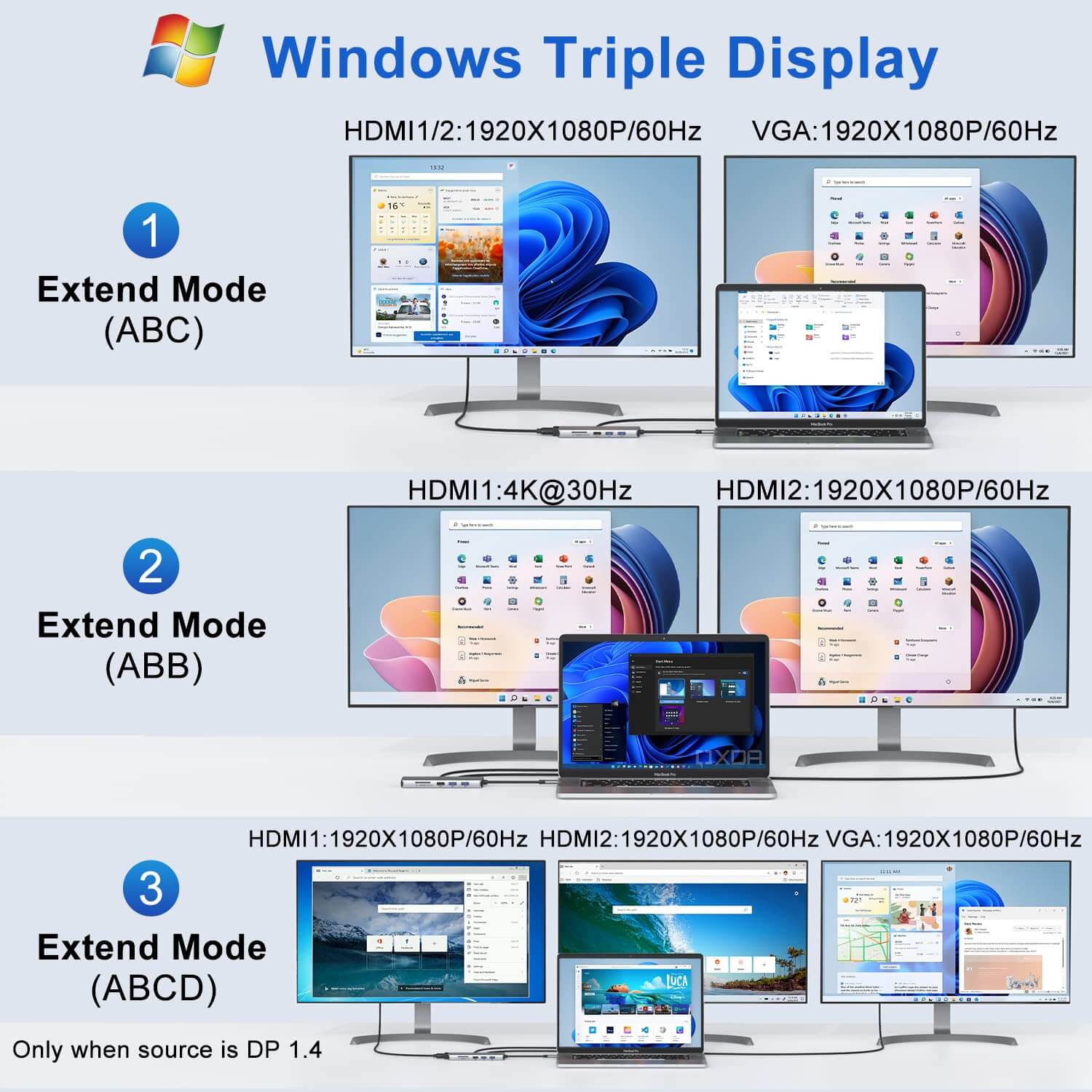

MST Mode Triple display for Windows system:
Multiple Display USB C Docking Station Video Resolution Configurations:
- Single Display HDMI 1 or DP up to 4K 60HZ 3840 x 2160 , while source is DP1.4.
- Dual Monitors Display up to 4K 30HZ 3840 x 2160 ( HDMI 1+ VGA ).
- Triple Display up to 4K 30HZ 3840 x 2160 ( HDMI 1+HDMI 2+ VGA ).
- Four Display UP to 1080P 30HZ 1920 x 1080 ( HDMI 1+HDMI 2+ VGA + Laptop).
When connecting three displays at the same time, the resolution can ONLY reach up to 1920*1080/60HZ. If you need, please click "Second screen only" to turn off the laptop screen after connecting.
Note: Among the four screens (Displays and Computer), only three can display; There will be one that can not displayed (either Display or Computer)
Important Note：
-
10 Gbps USB 3.1
Backup and save files faster than ever before over USB, with read and write speeds of over 900 MBps, when connected to a Thunderbolt 3 or USB 3.1 Gen 2 port.
-

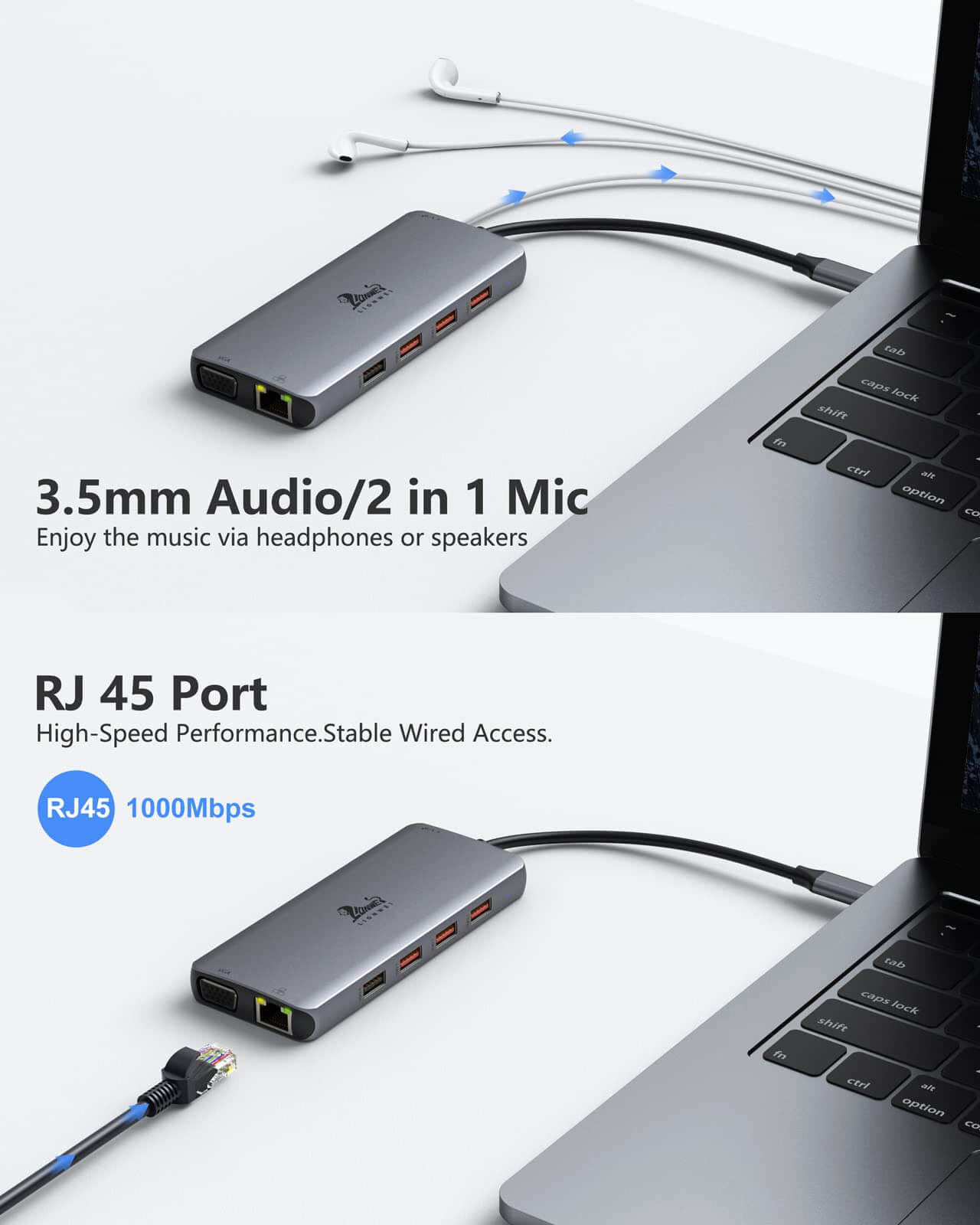

RJ45 USB C To Ethernet(Gigabit)
Gigabit Ethernet Lan port: No driver is needed. Just PLUG AND PLAY. Support 10/100/1000 Ethernet and make your work effective.
-

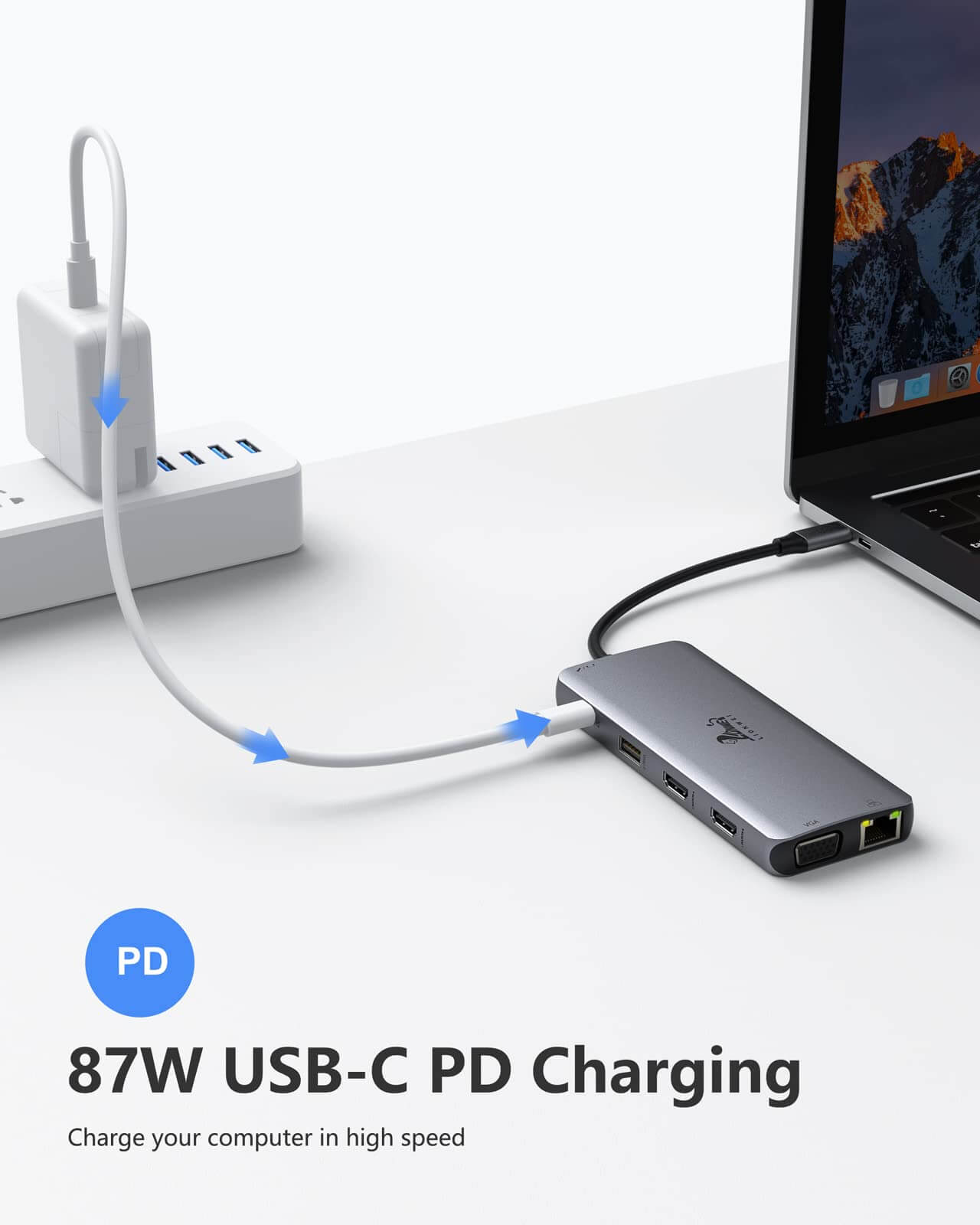

PD Charger Port
Support 100W USB-C 87W(safty) charging for your laptops while using other ports of this dual hdmi adapter.
-
3.5mm Audio/Mic (CTIA Standard)
The 3.5mm Audio Port with mic and audio-out function. It will be very convenient if your laptop is lack of 3.5mm Audio port.
FAQ:
Q1: Dose this compatible with my laptop?

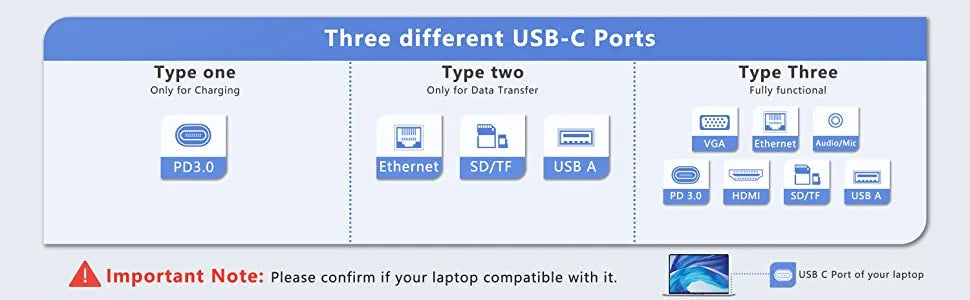

There are four types of type C ports:
1) Data transfer only;
2) Data transfer and external display;
3) Data transfer and PD charging;
4) Data transfer, external display and PD charging.
Q2: How do I know which type my device's TYPE C port belongs to?
Only USB Type C 3.1 Gen 2/ Type C 3.2 Gen 2 with Power Delivery & DisplayPort, Thunderbolt 3 with Power Delivery & DisplayPort.
You can refer to your laptop's manual to figure out which your usb c type is.

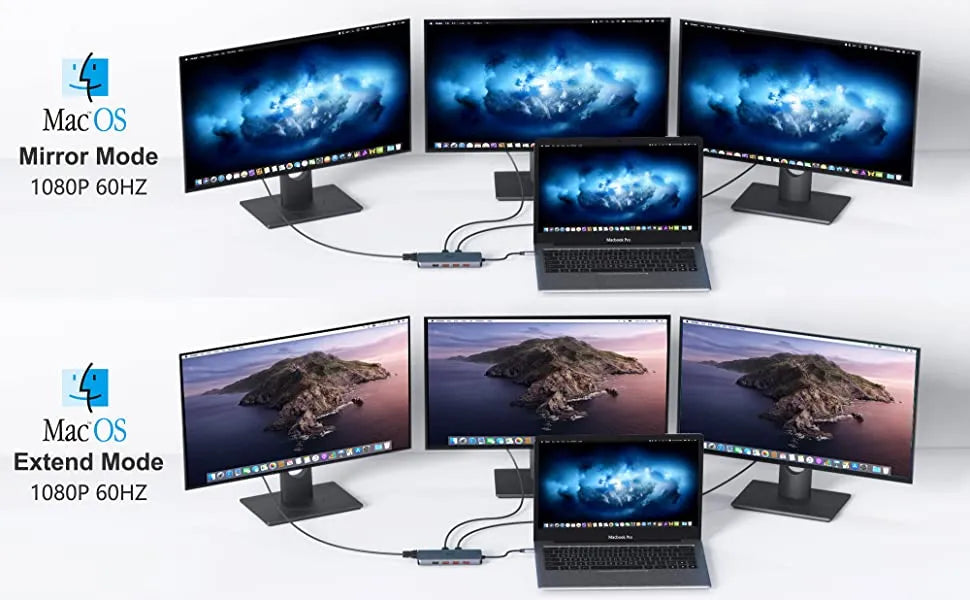

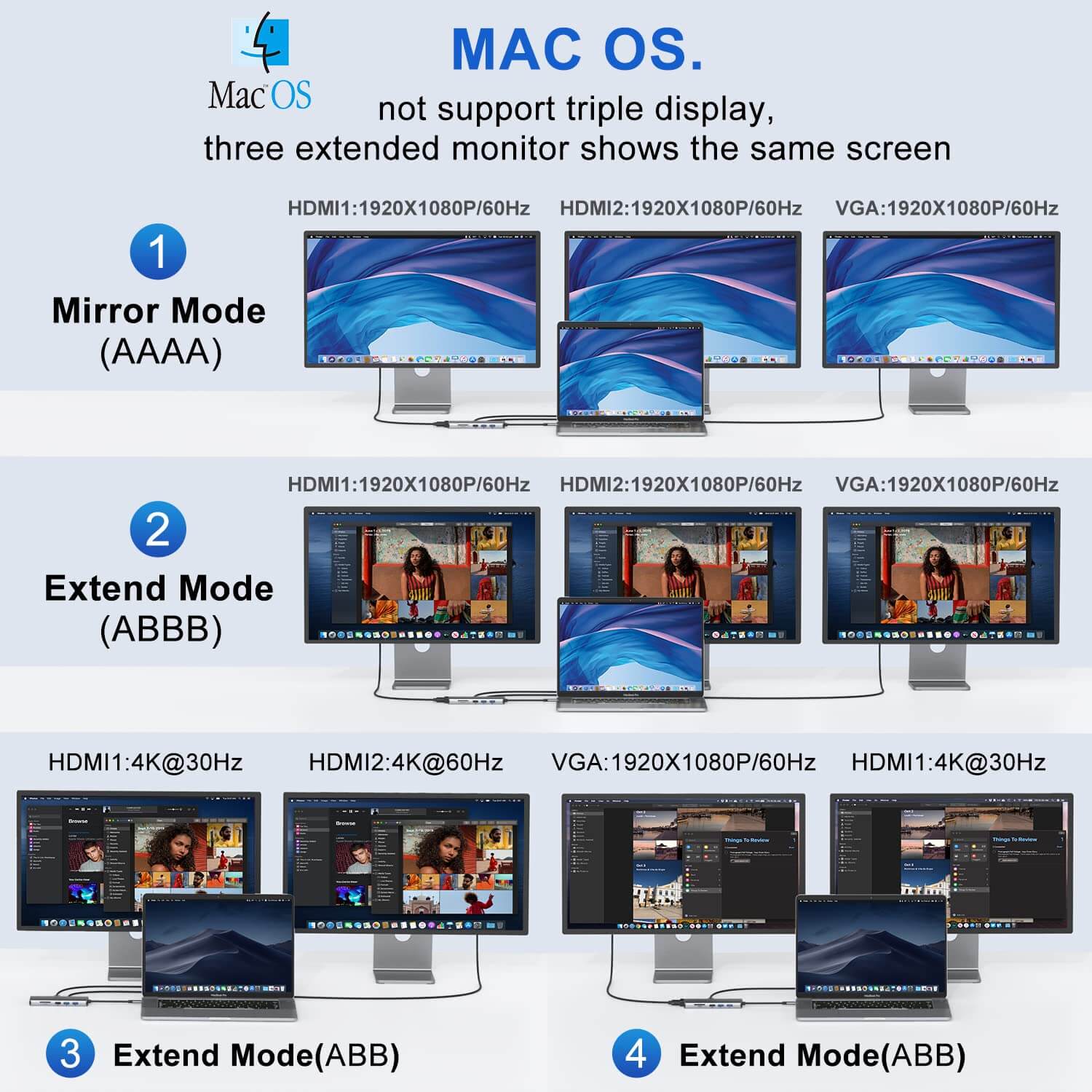

Q3: When I connect to macbook, I can’t extend the display of my desktop, why?
If you select non-mirror(extended mode) for OS systems laptop (Apple Laptop), it can only supports 3 duplicate (mirror) external monitors, but your laptop screen can be different image from 3 external monitors due to apple system restrictions.
Q4: Why do I have no display when the dock station is connected?
a. Make sure the type c power delivery port on you laptop is USB 3.1 Type-C (Gen2) or Thunderbolt 3 port (supports PD charging). That means the native type c port of laptop need to support video signal output.
b. Check your HDMI cable.
c. Ensure sufficient power supply from the USB C hub.

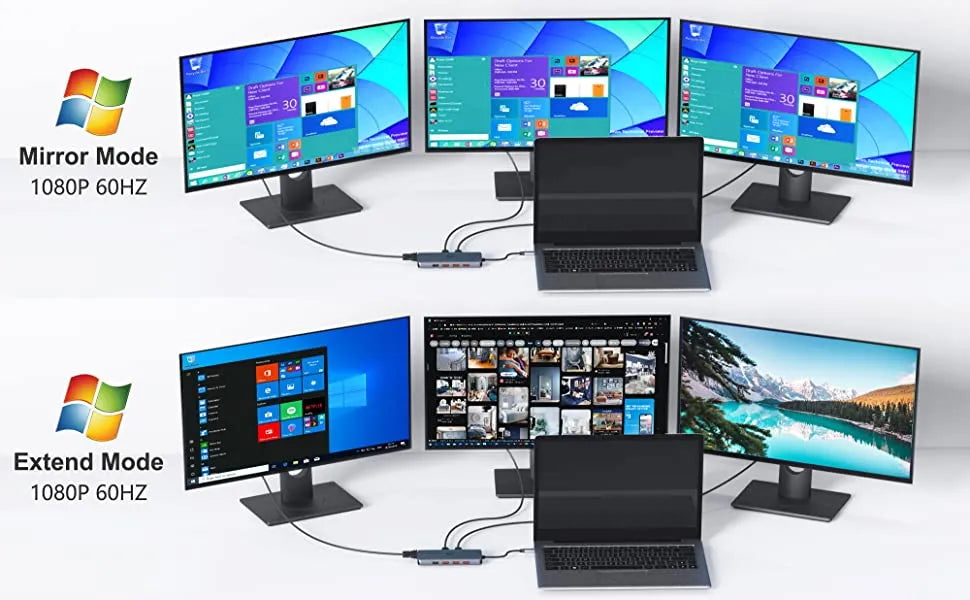

Q5: Why is my laptop screen black when I extend 3 monitors on my windows system laptop?
For Intel Graphics Card, it only supports 3 screens display, thus one of four screens (including laptop screen) will not be displayed. For AMD Graphics Card, all of four screens will be displayed.
Q6: Why does one of monitor resolution become lower than 1920 x 1080@60Hz, when I extend 3 monitors from my windows laptop?
In normal, when you connect 3 monitors, all of three monitor will output 1080P resolution. However, it may happen that one of the monitor screen resolution is lower than 1920 x 1080@60Hz (depending on the monitor and bandwidth).
Q7: When I plug in VGA port, why does the resolution become 1920 x 1080@60Hz?
Please do not worry. This usb c hub supports 4K@30Hz HDMI OUTPUT (depends on your HDMI cable and monitors). If you connect VGA, the resolution of all monitors will be limited to 1920 x 1080@60Hz (maximum).
Q8: When I plug in or plug out on this docking station, hdmi or VGA monitors go black for 2–4 seconds and then recover? Is this normal?
Please do not worry and be patient waiting for it. It is a process of EDID (Extended Display Identification Data) communication, which may blackout screen for a few seconds. The recovery time depends on laptop and monitor (1 minute at max).
Q9: How many watts do the charging port support?
This usb is USB-C PD 3.0 compliant which supports 100W power in (maximum power); Power out (charging) is recommended to 87W for safety.
Q10: Does this usb c hub support two 4k monitors at the same time?
Yes, it can. Please make sure your laptop, hdmi cable and monitors support 4K.
